气浮系统

气浮系统

Tri-N 拥有Orifce 及 Porous 形态的气浮系统设计及生产能力

The Air Floating System uses compressed air to transport the material to a non-contact conveying device

Air Floating System的 核心技术

多孔陶瓷
应对Office, 通过均压浮起移送对象(均匀的气孔率，透射率为必要条件)
抗静电功能
防止因静电引起的问题
提高刚性
弯曲强度 80 Mpa 以上的多孔质材料

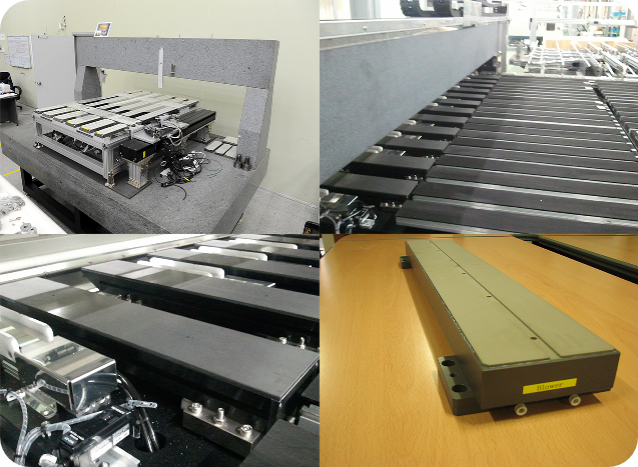

FPD Device Air Floating System

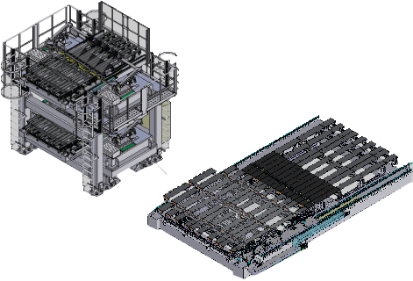

FPD 공정 장비에서의 Air Floating System
Porous Air Floating System

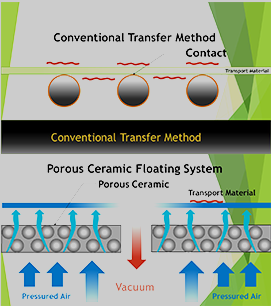

다공질 Air Floating System 원리

Advantages of Air Floating

  • 为了预防移送基盘时发生表面Scratch， 利用气浮系统
  • Prevention from Mura Defect due to glass deformation due to flatness and heat imbalance

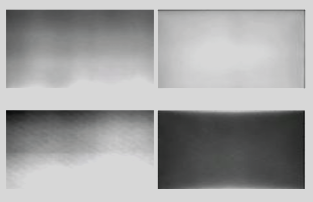

Figure2

<a>Cluster Mura; <b>Vertical Band Mura
<c>Rubbing Mura; <d>Light Leak Mura

FPD 공정 장비에서의 Air Floating System
Example of Mura Defect
다공질 Air Floating System 원리

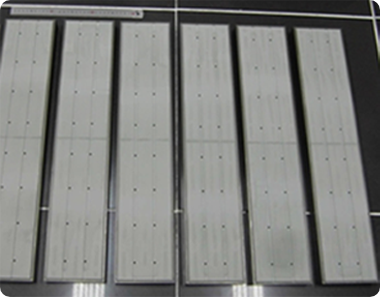

Porous Ceramic Floating System
Porous Ceramic Floating System

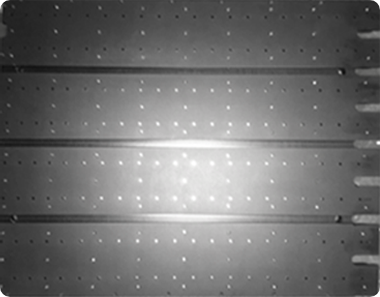

Orifice Type Floating System
Orifice Type Floating System
